Case Studies

Proven Material Offset Economics

Eight validated solar glazing project profiles across Canadian cities — climate-adjusted photovoltaic generation and net premium outcomes at framework supply pricing. Each profile models a real building type: solar curtain wall, photovoltaic spandrel, solar skylight, and railing glazing applications for commercial and institutional facades.

Reading the Numbers

Net premium vs. Day 1 surplus — same product, different baseline

Case studies and the homepage calculator use the same subsidy formulas (30% federal ITC + CCA Class 43.2 on net UCC). Outcomes differ because each scenario uses a different traditional material cost per m² — the inert envelope you are displacing.

Solutions — Industrial case study

COM-M1 at Framework supply pricing vs. precast metal siding at $220.00/m²

Net capital premium: $112.23/m²

Subsidies offset ~73% of the gross premium — payback and OpEx lead the case; metal siding is a low-cost baseline, not a Day 1 surplus anchor.

Homepage calculator — default inputs

COM-M1 at Framework supply pricing vs. precast metal siding at $220.00/m² — same baseline as the industrial case study

Net capital premium: $112.23/m²

Calculator defaults to COM-M1 and metal siding ($220/m²). Raise the traditional cost slider toward stone ($600.00/m²) to see surplus outcomes — e.g. $267.77/m² at a premium facade baseline.

Adjust traditional material cost in the homepage calculator to match your displaced envelope. Every case study shows computed ITC, CCA, and net premium at framework supply pricing from factory pricing — not hardcoded market estimates.

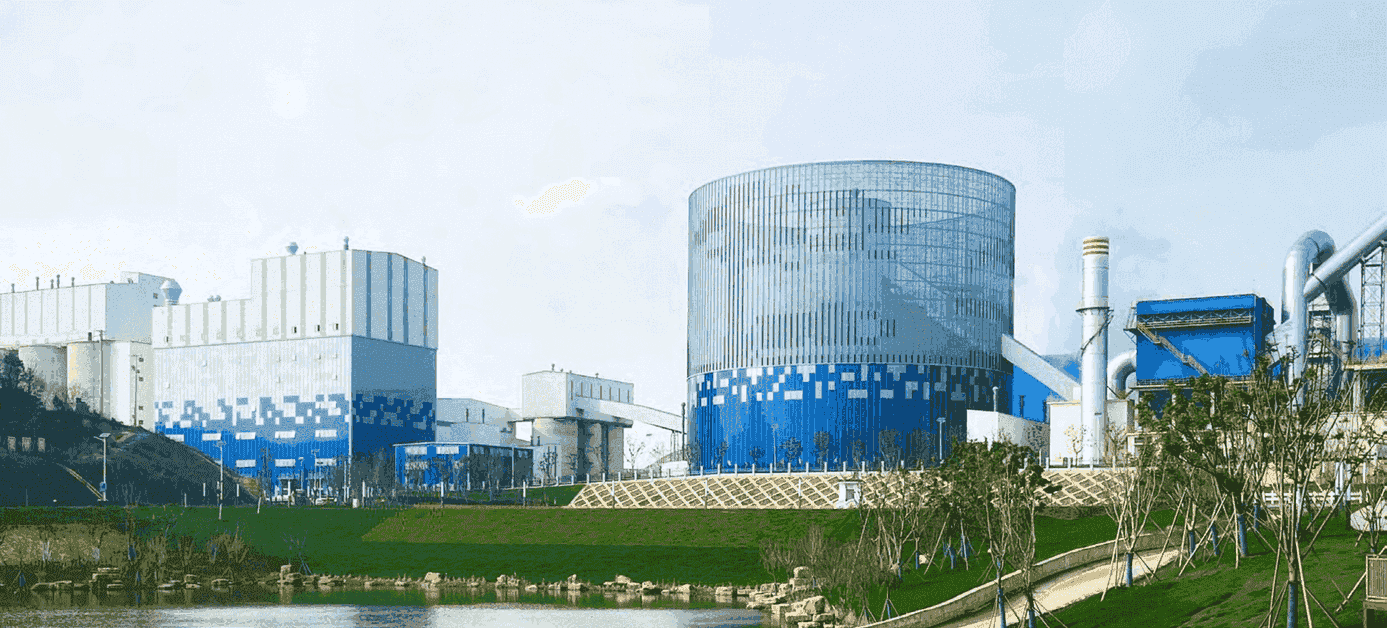

Industrial & Manufacturing

Metal Siding to Active Power Facade

Advanced Industrial Logistics — Edmonton, Alberta

Location & segment

Edmonton, AB · Industrial

NRCan city yield 0.95× vs Saskatoon · blended 58 kWh/m²/yr — NRCan Edmonton band 55–60 kWh/m²/yr — COM-M1 opaque CdTe spandrel at rated Pmax.

Traditional Material

$220.00/m²

Estimated Generation

BIPV envelope area

5,000 m²

Product specification

COM-M1 (5,000 m²)

Est. annual generation

~290 MWh/yr

City-adjusted blended 58 kWh/m²/yr

Est. annual energy value

$43,500/yr

At $0.15/kWh

Reference yields use NRCan vertical south data with CdTe installed capacity (~155 Wp/m² for opaque spandrel). Validate site-specific output with NRCan's PV mapping tool. NRCan PV mapping tool.

Framework supply pricing

Net Capital Premium

$112.23/m²

BIPV: $632.81/m²

Gross premium: $412.81/m² · ITC $190/m² · CCA $111/m²

Edmonton — At 5,000 m², city-adjusted output reaches ~290 MWh/yr (~$43,500/yr at $0.15/kWh) — At ~12.9 years (illustrative, south-facing facade at 58 kWh/m²/yr and $0.15/kWh), energy savings recover the $112.23/m² net capital premium — permanent OpEx reduction from on-site generation continues after break-even. Federal ITC and CCA absorb roughly 73% of the $412.81/m² gross premium at $632.81/m² BIPV vs. $220.00/m² precast metal siding envelope — this is not a Day 1 construction surplus; metal cladding is a low-cost baseline and a modest net premium remains after subsidies. COM-M1 is the entry point for opaque spandrel replacement at scale. Illustrative south-facing vertical facade reference yield — not a full irradiance model. Adjust for site orientation, shading, and climate zone..

Mission-critical resiliency for data infrastructure and logistics. On-site generation reduces grid exposure from day one.

Edmonton — Alberta TIER & LEED Canada

Industrial and large commercial facilities in Edmonton may be subject to Alberta's TIER regulation. On-site BIPV generation displaces Alberta grid electricity (~0.53 kg CO₂e/kWh), reducing Scope 2 emissions and potentially lowering TIER emission performance credit obligations. For institutional and commercial projects pursuing LEED Canada, BIPV facades contribute to EA Credit: Renewable Energy Production and EA Credit: Optimize Energy Performance when modelled in the whole-building energy study. Powerglass supplies material only; TIER compliance and LEED submissions require qualified Alberta-registered GHG auditors and LEED APs.

Green building programs →

Material supply only — not compliance or certification advice. Confirm BIPV contribution with your energy consultant.

Model this project

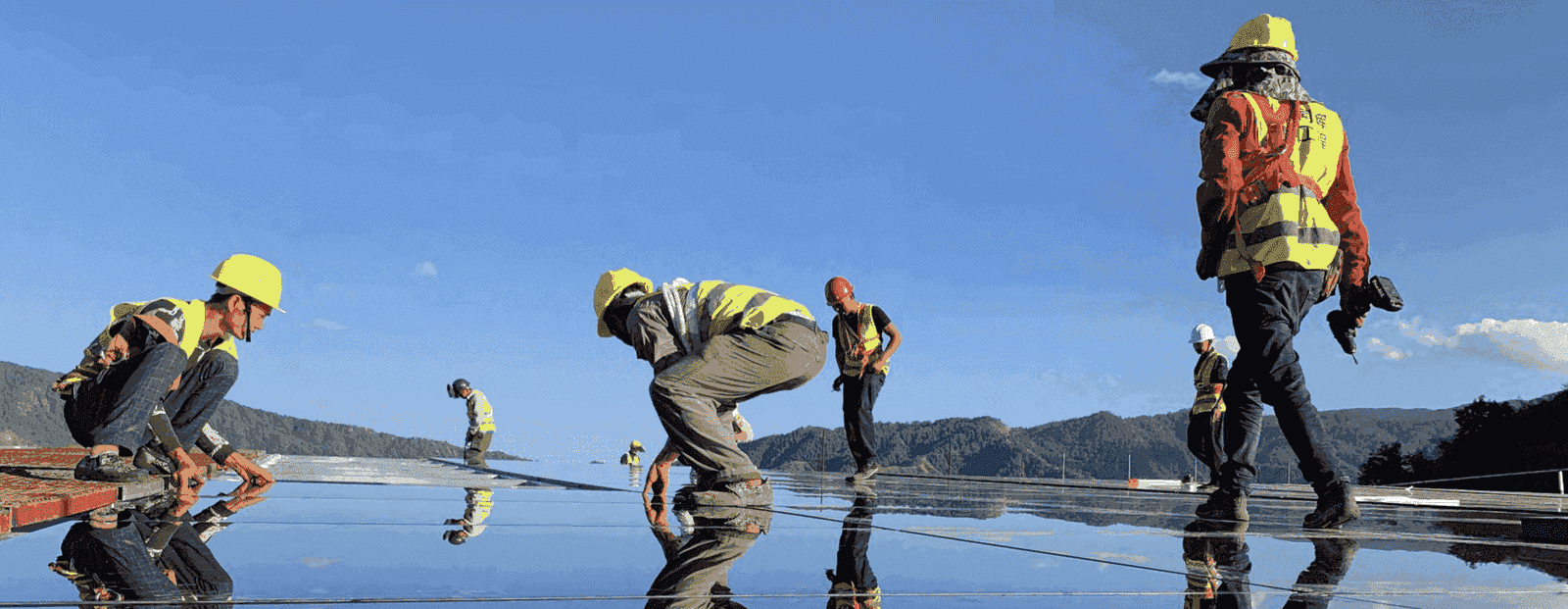

Industrial Manufacturing

Roof + Curtain Wall Combined BIPV

Large Manufacturing Plant — Saskatoon, Saskatchewan

Location & segment

Saskatoon, SK · Manufacturing

NRCan city yield 1× vs Saskatoon · blended 61 kWh/m²/yr — NRCan Saskatoon reference band 58–63 kWh/m²/yr — COM-M1 on south-facing roof and spandrel.

Traditional Material

$220.00/m²

Roof + Facade

Combined envelope

Reference Scale

~580 kW cement plant

Estimated Generation

BIPV envelope area

12,000 m²

Product specification

COM-M1 roof BIPV (7,500 m²) · COM-M1 curtain spandrel (4,500 m²)

Est. annual generation

~732 MWh/yr

City-adjusted blended 61 kWh/m²/yr

Est. annual energy value

$109,800/yr

At $0.15/kWh

Reference yields use NRCan vertical south data with CdTe installed capacity (~155 Wp/m² for opaque spandrel). Validate site-specific output with NRCan's PV mapping tool. NRCan PV mapping tool.

Framework supply pricing

Net Capital Premium

$112.23/m²

BIPV: $632.81/m²

Gross premium: $412.81/m² · ITC $190/m² · CCA $111/m²

Saskatoon — Roof BIPV and curtain wall spandrel in one coordinated envelope — At 12,000 m², city-adjusted output reaches ~732 MWh/yr (~$109,800/yr at $0.15/kWh) — At ~12.3 years (illustrative, south-facing facade at 61 kWh/m²/yr and $0.15/kWh), energy savings recover the $112.23/m² net capital premium — permanent OpEx reduction from on-site generation continues after break-even. Federal ITC and CCA absorb roughly 73% of the $412.81/m² gross premium at $632.81/m² BIPV vs. $220.00/m² precast metal cladding envelope — this is not a Day 1 construction surplus; metal cladding is a low-cost baseline and a modest net premium remains after subsidies. COM-M1 is the entry point for opaque spandrel replacement at scale. Illustrative south-facing vertical facade reference yield — not a full irradiance model. Adjust for site orientation, shading, and climate zone..

Single-project envelope strategy: opaque spandrel on curtain wall plus roof BIPV replaces metal cladding and conventional roofing in one coordinated specification.

Saskatoon — NECB Performance Path & LEED Canada

Saskatchewan industrial and commercial projects follow the National Energy Code for Buildings (NECB) performance path, under which on-site BIPV generation can partially offset building energy consumption in the whole-building energy model. LEED Canada projects in Saskatoon may earn EA Credit: Renewable Energy Production points when facade BIPV is included in the energy simulation. Powerglass supplies material only; NECB and LEED compliance must be confirmed by the project engineer and LEED Accredited Professional.

Green building programs →

Material supply only — not compliance or certification advice. Confirm BIPV contribution with your energy consultant.

Model this project

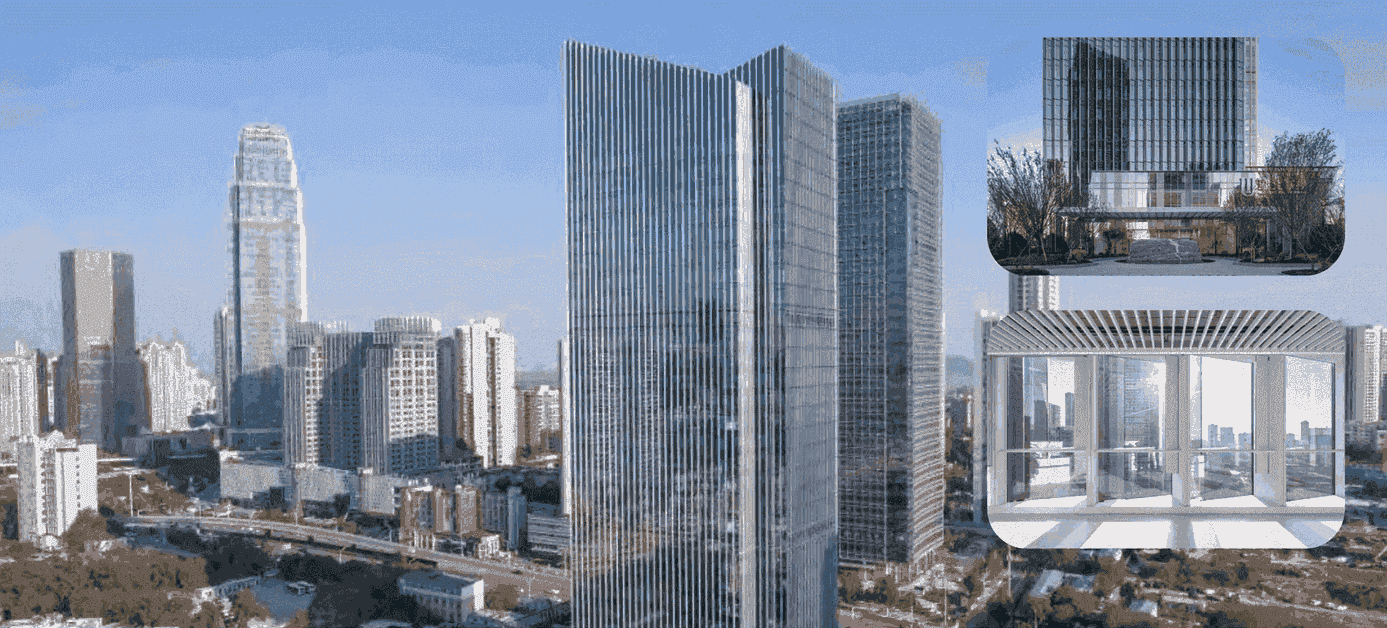

Class A Commercial Office

Stone Facade to Subsidized BIPV Upgrade

Premium Office Skyscraper — Toronto, Ontario

Location & segment

Toronto, ON · Commercial office

NRCan city yield 0.87× vs Saskatoon · blended 36 kWh/m²/yr — NRCan Toronto band 50–55 kWh/m²/yr — COM-CA2 spandrel plus COM-Z3 vision zones.

Traditional Material

$600.00/m²

Estimated Generation

BIPV envelope area

3,000 m²

Product specification

COM-CA2 spandrel (2,400 m²) · COM-Z3 vision zones (600 m²)

Est. annual generation

~108 MWh/yr

City-adjusted blended 36 kWh/m²/yr

Est. annual energy value

$16,200/yr

At $0.15/kWh

Reference yields use NRCan vertical south data with CdTe installed capacity (~155 Wp/m² for opaque spandrel). Validate site-specific output with NRCan's PV mapping tool. NRCan PV mapping tool.

Framework supply pricing

Net Capital Premium

$133.69/m²

BIPV: $1,397.50/m²

Gross premium: $797.50/m² · ITC $419/m² · CCA $245/m²

Toronto — At 3,000 m², city-adjusted output reaches ~108 MWh/yr (~$16,200/yr at $0.15/kWh) — Installed comparison uses $1,397.50/m² all-in BIPV (material plus illustrative $250.00/m² install/labor) vs. $600.00/m² installed stone — At ~24.8 years (illustrative, south-facing facade at 36 kWh/m²/yr and $0.15/kWh), energy savings recover the $133.69/m² net capital premium — stone aesthetics and active generation with a CRA-certified clean technology upgrade — this is not a Day 1 construction surplus hero; installed curtain-wall integration cost must be included when comparing to installed stone. Permanent OpEx reduction from on-site generation continues after break-even. Illustrative south-facing vertical facade reference yield — not a full irradiance model. Adjust for site orientation, shading, and climate zone..

Framework supply pricing card includes illustrative $250.00/m² install/labor adder for installed-vs-installed comparison with imported natural building stone.

Permanent OpEx reduction from on-site generation layered on a net capital premium after the federal subsidy stack — energy savings recover the installed envelope gap over project life.

Toronto Green Standard (TGS)

Toronto's Green Standard Tier 2 and above reward on-site renewable energy generation and high-performance building envelopes. BIPV facades contributing to Tier 2 operational carbon targets must be modelled in the project energy study by a qualified energy consultant. LEED Canada (CaGBC) projects in Toronto may also earn points under EA Credit: Renewable Energy Production when on-site generation is included in the whole-building energy model. Powerglass supplies material only; we do not perform TGS compliance submissions or energy modelling.

Green building programs →

Material supply only — not compliance or certification advice. Confirm BIPV contribution with your energy consultant.

Model this project

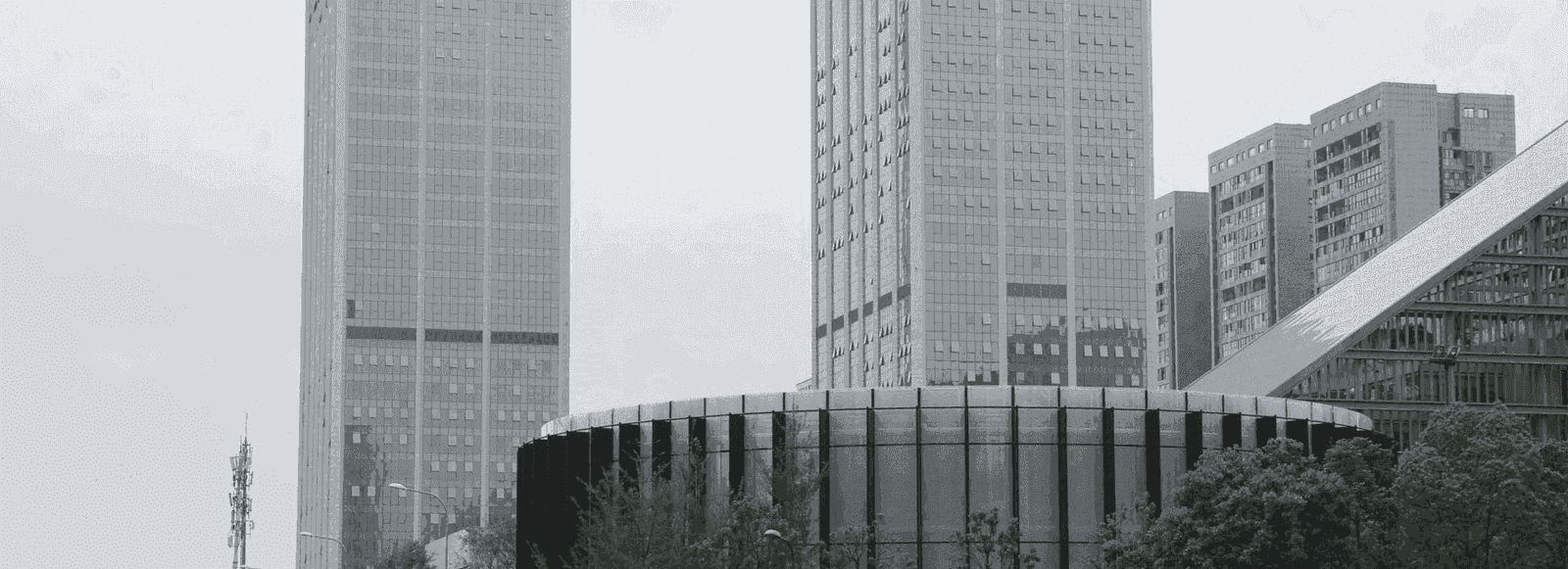

Class A Corporate HQ

Designer Curtain Wall BIPV Integration

Corporate Headquarters Campus — Calgary, Alberta

Location & segment

Calgary, AB · Corporate HQ

NRCan city yield 1.03× vs Saskatoon · blended 40.7 kWh/m²/yr — NRCan Calgary band 60–65 kWh/m²/yr — COM-CA2 main facade plus COM-CBS1 accent panels.

Traditional Material

$600.00/m²

Facade Type

Unitized curtain wall

Baseline

Stone / designer

Estimated Generation

BIPV envelope area

4,500 m²

Product specification

COM-CA2 main facade (3,600 m²) · COM-CBS1 accent panels (900 m²)

Est. annual generation

~183 MWh/yr

City-adjusted blended 40.7 kWh/m²/yr

Est. annual energy value

$27,500/yr

At $0.15/kWh

Reference yields use NRCan vertical south data with CdTe installed capacity (~155 Wp/m² for opaque spandrel). Validate site-specific output with NRCan's PV mapping tool. NRCan PV mapping tool.

Framework supply pricing

Net Capital Premium

$133.69/m²

BIPV: $1,397.50/m²

Gross premium: $797.50/m² · ITC $419/m² · CCA $245/m²

Calgary — At 4,500 m², city-adjusted output reaches ~183 MWh/yr (~$27,500/yr at $0.15/kWh) — Installed comparison uses $1,397.50/m² all-in BIPV (material plus illustrative $250.00/m² install/labor) vs. $600.00/m² installed stone — At ~21.9 years (illustrative, south-facing facade at 40.7 kWh/m²/yr and $0.15/kWh), energy savings recover the $133.69/m² net capital premium — stone aesthetics and active generation with a CRA-certified clean technology upgrade — this is not a Day 1 construction surplus hero; installed curtain-wall integration cost must be included when comparing to installed stone. Permanent OpEx reduction from on-site generation continues after break-even. Illustrative south-facing vertical facade reference yield — not a full irradiance model. Adjust for site orientation, shading, and climate zone..

Framework supply pricing card includes illustrative $250.00/m² install/labor adder for installed-vs-installed comparison with imported designer stone facade.

Designer glass integration preserves Class A street presence while federal subsidies offset the installed envelope premium against stone baseline.

Model this project

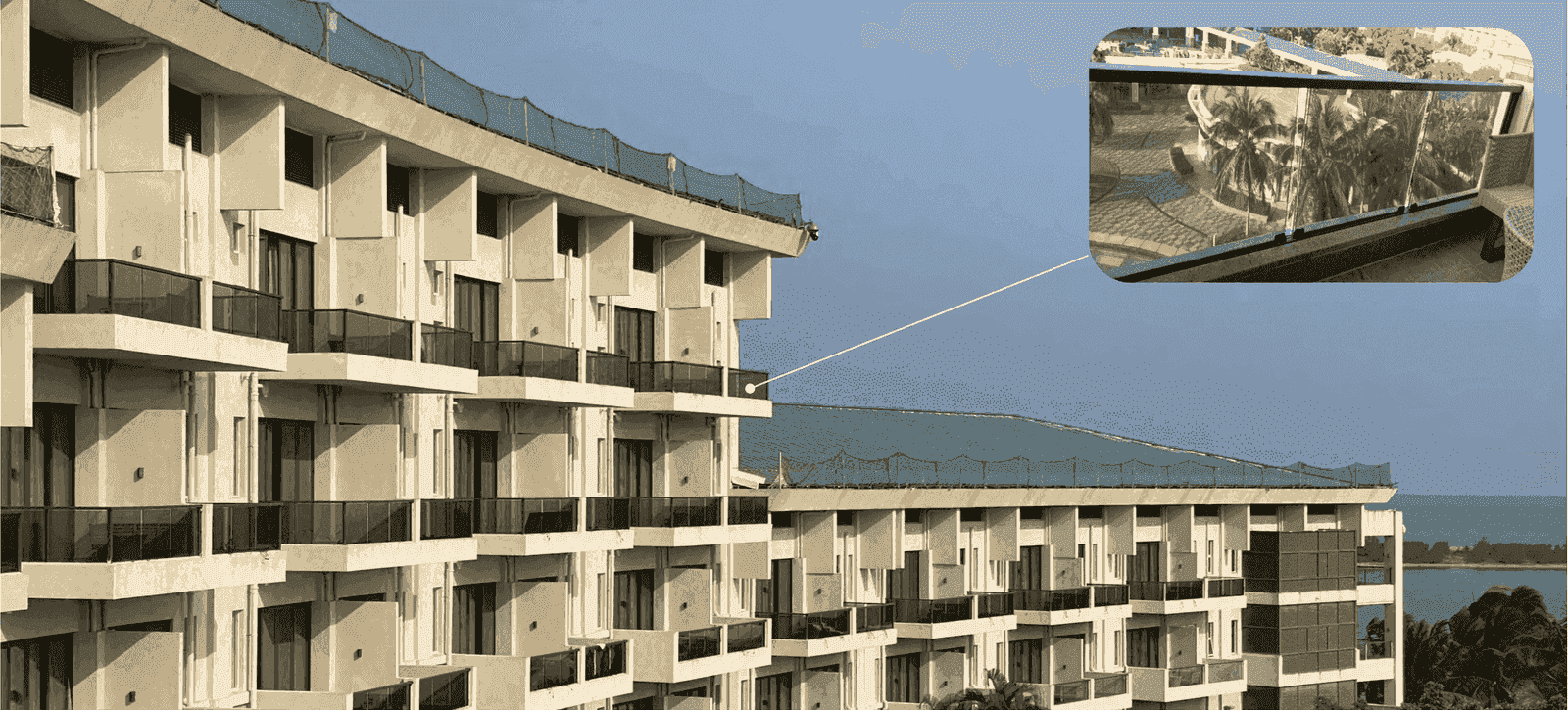

Mixed-Use Residential Tower

Curtain Wall + Balcony Railing BIPV

High-Rise Multi-Dwelling — Winnipeg, Manitoba

Location & segment

Winnipeg, MB · Mixed-use MDU

NRCan city yield 0.95× vs Saskatoon · blended 56.4 kWh/m²/yr — NRCan Winnipeg band 55–60 kWh/m²/yr — COM-M1 tower spandrel plus COM-S1 balcony railings.

Traditional Material

$380.00/m²

Products

COM-M1 + COM-S1

CMHC MLI Select

Up to 95% LTV

Estimated Generation

BIPV envelope area

2,200 m²

Product specification

COM-M1 tower spandrel (1,600 m²) · COM-S1 balcony railings (600 m²)

Est. annual generation

~124 MWh/yr

City-adjusted blended 56.4 kWh/m²/yr

Est. annual energy value

$18,618/yr

At $0.15/kWh

Reference yields use NRCan vertical south data with CdTe installed capacity (~155 Wp/m² for opaque spandrel). Validate site-specific output with NRCan's PV mapping tool. NRCan PV mapping tool.

Framework supply pricing

Net Capital Premium

$801.25/m²

BIPV: $2,250.00/m²

Gross premium: $1,870.00/m² · ITC $675/m² · CCA $394/m²

Winnipeg — COM-M1 spandrel plus COM-S1 balcony railings on one tower — At 2,200 m², city-adjusted output reaches ~124 MWh/yr (~$18,618/yr at $0.15/kWh) — COM-S1 at $2,250.00/m² vs. $380.00/m² standard safety glass balcony railings — the capital stack does not win on displaced railing budget alone: $801.25/m² net capital premium remains after federal subsidies offset roughly 57% of the $1,870.00/m² gross premium. The business case rests on CMHC MLI Select green financing (up to 95% LTV and 50-year amortization on qualifying projects) and structural resolution of the landlord split-incentive — capital cost sits with the developer while savings flow to the building balance sheet. Illustrative south-facing vertical facade reference yield — not a full irradiance model. Adjust for site orientation, shading, and climate zone..

COM-M1 spandrel on tower curtain wall plus COM-S1 structural balcony railings — CMHC MLI Select unlocks green financing when capital cost exceeds railing displacement alone.

Model this project

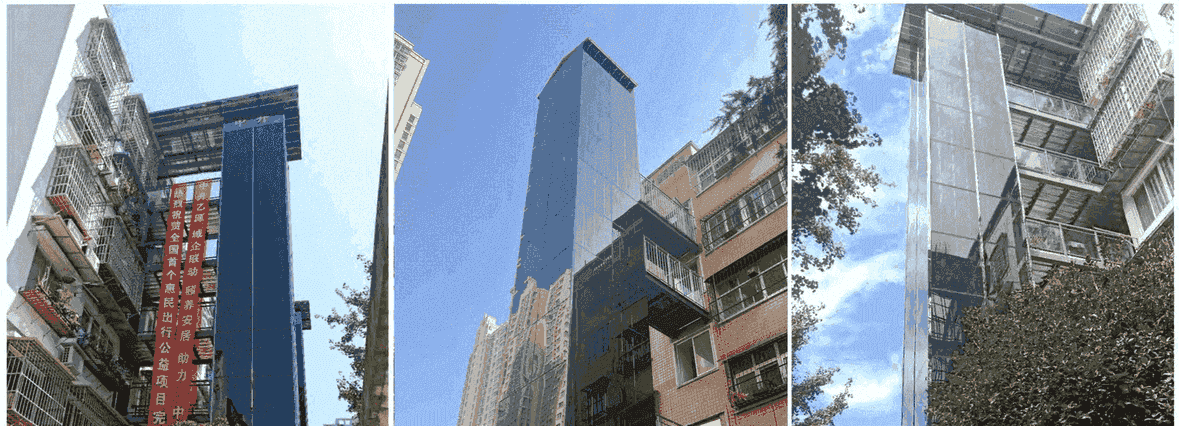

Institutional Envelope

Institutional envelope — BIPV railings & spandrel

Federal Campus & Civic Building — Ottawa, Ontario

Location & segment

Ottawa, ON · Institutional

NRCan city yield 0.87× vs Saskatoon · blended 50.5 kWh/m²/yr — NRCan Ottawa band 50–55 kWh/m²/yr — COM-S1 railings plus COM-M1 spandrel on civic envelope.

Traditional Material

$380.00/m²

Envelope

COM-S1 + COM-M1

Asset class

Institutional

Estimated Generation

BIPV envelope area

1,800 m²

Product specification

COM-S1 railings (800 m²) · COM-M1 spandrel (1,000 m²)

Est. annual generation

~91 MWh/yr

City-adjusted blended 50.5 kWh/m²/yr

Est. annual energy value

$13,647/yr

At $0.15/kWh

Reference yields use NRCan vertical south data with CdTe installed capacity (~155 Wp/m² for opaque spandrel). Validate site-specific output with NRCan's PV mapping tool. NRCan PV mapping tool.

Framework supply pricing

Net Capital Premium

$801.25/m²

BIPV: $2,250.00/m²

Gross premium: $1,870.00/m² · ITC $675/m² · CCA $394/m²

Ottawa — federal institutional spandrel — At 1,800 m², city-adjusted output reaches ~91 MWh/yr (~$13,647/yr at $0.15/kWh) — COM-S1 opaque spandrel replaces standard curtain wall spandrel and safety railings at $2,250.00/m². Federal ITC and CCA Class 43.2 absorb roughly 57% of the $1,870.00/m² gross premium over the civic asset life — lifecycle generation offsets operating budgets over the asset's long civic life. ITC and CCA are the compliance and financing mechanism — this is an operating-budget and lifecycle story for federal and civic institutional procurement. Illustrative south-facing vertical facade reference yield — not a full irradiance model. Adjust for site orientation, shading, and climate zone..

Compliance & Fiscal Framework

Federal fiscal tools over long institutional asset life

Federal ITCCCA Class 43.2LEED CanadaNECB Performance Path

A 30% federal ITC (cash-refundable) plus CCA Class 43.2 deductions absorb a substantial share of the installed envelope premium over a 30+ year civic asset life. Federal and institutional facilities are ideally positioned to capture lifecycle value through operating budget savings and clean-technology certifications — without payback-period framing suited to commercial real estate.

Green building programs →

Material supply only — not compliance or certification advice. Confirm BIPV contribution with your energy consultant.

30-Year Lifecycle Value

Asset life

30 years

Civic / institutional

Cumulative energy value

$421K

2,808 MWh generated

Net premium offset

29%

Energy savings vs. net capital cost

Illustrative — south-facing vertical facade reference yield over 30 years. Net premium after 30% federal ITC and CCA Class 43.2. Validate site-specific output with a qualified energy consultant.

Long institutional asset life aligns with federal ITC and CCA Class 43.2 — on-site generation offsets operating budgets without condo-fee or CMHC financing mechanics.

Ottawa — LEED Canada & NECB Performance Path

Federal and institutional projects in Ottawa frequently pursue LEED Canada certification through the Canada Green Building Council (CaGBC). LEED v4.1 EA Credit: Renewable Energy Production can include on-site BIPV generation when modelled by the project LEED AP. Under the National Energy Code for Buildings (NECB) performance path — adopted by Ontario — modelled kWh from facade-integrated photovoltaics can partially offset building energy consumption toward code targets. Powerglass supplies material only; NECB and LEED compliance analysis must be performed by the project engineer or LEED Accredited Professional.

Green building programs →

Material supply only — not compliance or certification advice. Confirm BIPV contribution with your energy consultant.

Model this project

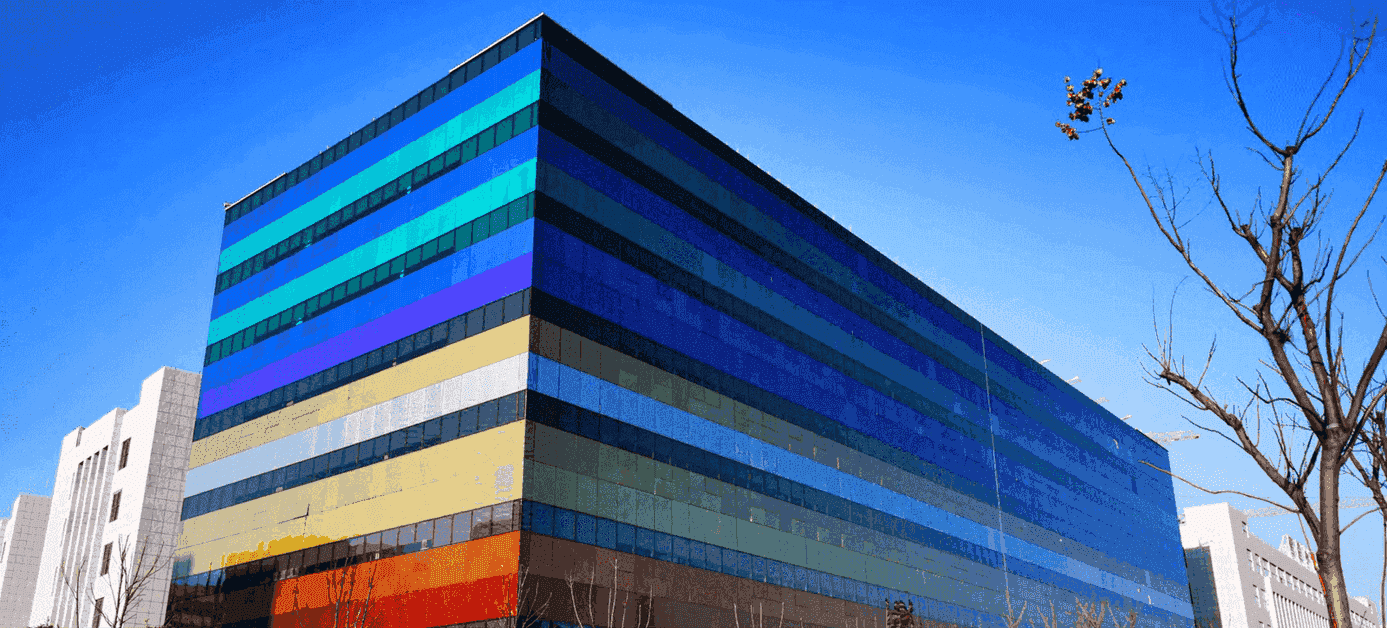

Coastal Designer Facade

Coastal designer facade — coloured BIPV glass

Waterfront Class A Tower — Vancouver, British Columbia

Location & segment

Vancouver, BC · Coastal designer

NRCan city yield 0.79× vs Saskatoon · blended 30.5 kWh/m²/yr — NRCan Vancouver band 45–50 kWh/m²/yr — CdTe performs relatively well in diffuse coastal light; COM-CBS1 coloured panels plus COM-CA2 spandrel.

Traditional Material

$600.00/m²

Facade Type

Coloured vision glass

Climate

Coastal / marine

Estimated Generation

BIPV envelope area

4,200 m²

Product specification

COM-CBS1 coloured panels (1,200 m²) · COM-CA2 spandrel (3,000 m²)

Est. annual generation

~128 MWh/yr

City-adjusted blended 30.5 kWh/m²/yr

Est. annual energy value

$19,233/yr

At $0.15/kWh

Reference yields use NRCan vertical south data with CdTe installed capacity (~155 Wp/m² for opaque spandrel). Validate site-specific output with NRCan's PV mapping tool. NRCan PV mapping tool.

Framework supply pricing

Net Capital Premium

$192.75/m²

BIPV: $1,510.00/m²

Gross premium: $910.00/m² · ITC $453/m² · CCA $264/m²

Vancouver coastal designer coloured glass — At 4,200 m², city-adjusted output reaches ~128 MWh/yr (~$19,233/yr at $0.15/kWh) — Installed comparison uses $1,510.00/m² all-in BIPV (material plus illustrative $250.00/m² install/labor) vs. $600.00/m² installed designer glazing — Federal ITC and CCA absorb roughly 79% of the $910.00/m² gross premium — architect-led coloured BIPV preserves street presence at $1,510.00/m² vs. $600.00/m² imported designer curtain wall glazing. Lower city solar factor is offset by designer facade value and permanent OpEx reduction. Illustrative south-facing vertical facade reference yield — not a full irradiance model. Adjust for site orientation, shading, and climate zone..

Designer Value Frame

Architect-specification coloured glass — matches premium curtain wall glazing aesthetic with active power generation embedded in the envelope.

Baseline (Imported designer curtain wall glazing)

$600.00/m²

BIPV (installed, all-in)

$1,510.00/m²

+$910.00/m² vs. baseline before subsidies

Regulatory driver

Energize Vancouver GHG bylaw — annual GHG intensity reporting and limits from 2026 for large commercial buildings; BIPV displaces grid electricity imports and directly lowers reported GHGi.

Energize Vancouver program details →

Material supply only — not compliance or certification advice. Confirm BIPV contribution with your energy consultant.

Framework supply pricing card includes illustrative $250.00/m² install/labor adder for installed-vs-installed comparison with imported designer curtain wall glazing.

Architect-led coloured glass specification preserves coastal street presence while federal subsidies offset the installed envelope premium.

Vancouver green building programs

Vancouver's Energize Vancouver program requires annual energy and GHG reporting for large commercial and multi-family buildings, with GHG intensity limits for large office and retail properties. On-site generation from BIPV glazing reduces grid electricity imports and can lower reported GHGi — your energy consultant can model the contribution for your specific building. For new construction, the BC Energy Step Code tiers reward on-site renewable generation toward near-zero outcomes. Powerglass supplies material only; we do not perform compliance reporting or energy modelling.

Green building programs →

Material supply only — not compliance or certification advice. Confirm BIPV contribution with your energy consultant.

Model this project

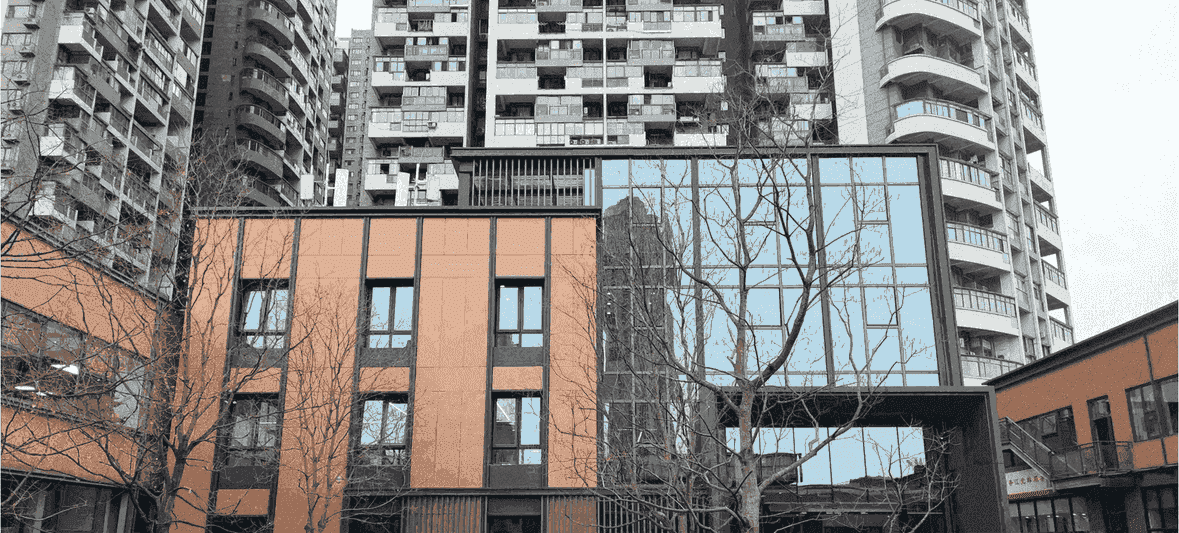

Quebec Architecture

QC architecture — coloured glass feature facade

Heritage-Inspired Commercial Tower — Montreal, Quebec

Location & segment

Montreal, QC · QC architecture

NRCan city yield 0.87× vs Saskatoon · blended 33.5 kWh/m²/yr — NRCan Montreal band 50–55 kWh/m²/yr — COM-CBS1 bronze-coloured panels plus COM-CA2 spandrel.

Traditional Material

$600.00/m²

Facade Type

Coloured feature glass

Baseline

Stone / bronze glaze

Estimated Generation

BIPV envelope area

4,200 m²

Product specification

COM-CBS1 bronze panels (1,400 m²) · COM-CA2 spandrel (2,800 m²)

Est. annual generation

~141 MWh/yr

City-adjusted blended 33.5 kWh/m²/yr

Est. annual energy value

$21,126/yr

At $0.15/kWh

Reference yields use NRCan vertical south data with CdTe installed capacity (~155 Wp/m² for opaque spandrel). Validate site-specific output with NRCan's PV mapping tool. NRCan PV mapping tool.

Framework supply pricing

Net Capital Premium

$192.75/m²

BIPV: $1,510.00/m²

Gross premium: $910.00/m² · ITC $453/m² · CCA $264/m²

Montreal Quebec heritage-inspired coloured glass — At 4,200 m², city-adjusted output reaches ~141 MWh/yr (~$21,126/yr at $0.15/kWh) — Installed comparison uses $1,510.00/m² all-in BIPV (material plus illustrative $250.00/m² install/labor) vs. $600.00/m² installed designer glazing — Federal ITC and CCA absorb roughly 79% of the $910.00/m² gross premium — architect-led coloured BIPV preserves street presence at $1,510.00/m² vs. $600.00/m² imported natural stone and bronze-tinted glazing. Lower city solar factor is offset by designer facade value and permanent OpEx reduction. Illustrative south-facing vertical facade reference yield — not a full irradiance model. Adjust for site orientation, shading, and climate zone..

Framework supply pricing card includes illustrative $250.00/m² install/labor adder for installed-vs-installed comparison with imported natural stone and bronze-tinted glazing.

Bronze and coloured BIPV glass meets Quebec architectural character requirements while delivering on-site generation and federal clean-tech incentives.

Model this project

Ready to specify COM series for your project?

Review full specifications, transparency options, and pricing for all five BIPV glazing systems.

View Products →Green Building Programs →
